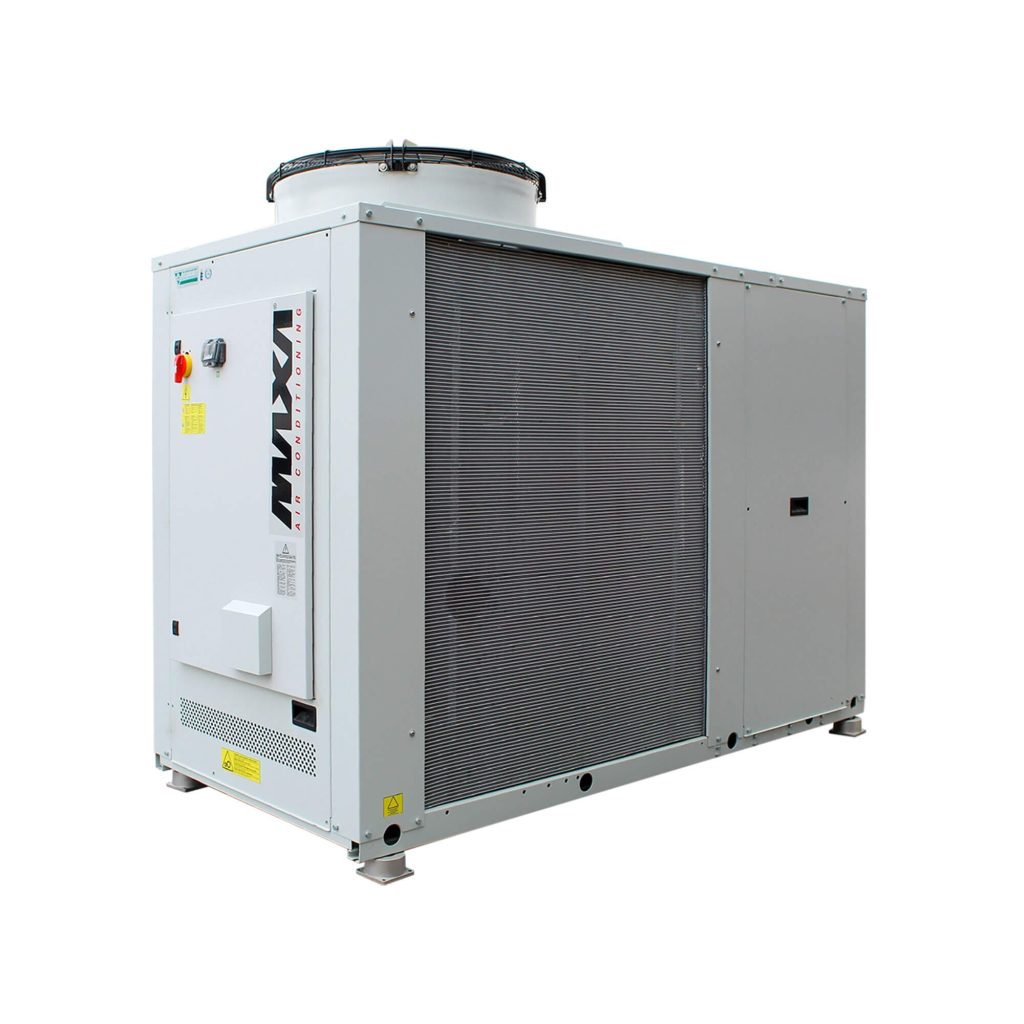

i-HPV5H 0260


DC inverter technology and low GWP R32 refrigerant

New Air/Water heat pump with DC inverter technology and low GWP R32 refrigerant for outdoor installation. The range consists of 4 models with DC inverter compressors of hermetic scroll type specifically designed for operation with R32. The fan is of axial type with airfoil blades, specially shaped to increase the efficiency and reduce noise with electric motor driven in modulation with directly coupled brushless EC motor.

New configurations with hydronic kit consisting of single pump or double pump on/off and Inverter, and inertial tank on board the machine. New acoustic configurations silenced, super silenced and ducted version. New machine version with a desuperheater that allows to recover about 20% of the condensation heat, the kit includes a brazed plate exchanger and an electronic circulator managed by the on-board control. New low temperature machine version for “process” applications, that allows the unit’s operating range to be extended by cooling water to the user up to -8°C using a mixture of water and glycol.

  • Refrigeration power (kW): 37,3÷66
  • Refrigerant gas: R32
  • Thermal power (kW): 40,6÷66,6
  • Energy class in heat: A++
SKU: IHPV5H_0260 Category: Tag:

Technical Details



Output @ -2°C / 50°C Flow




Type of Heat Pump
